THREE-SHAFTS TYPE
AUTOMATIC CLING FILM REWINDER
(ADJUSTMENT)
(TB-CW-3S)

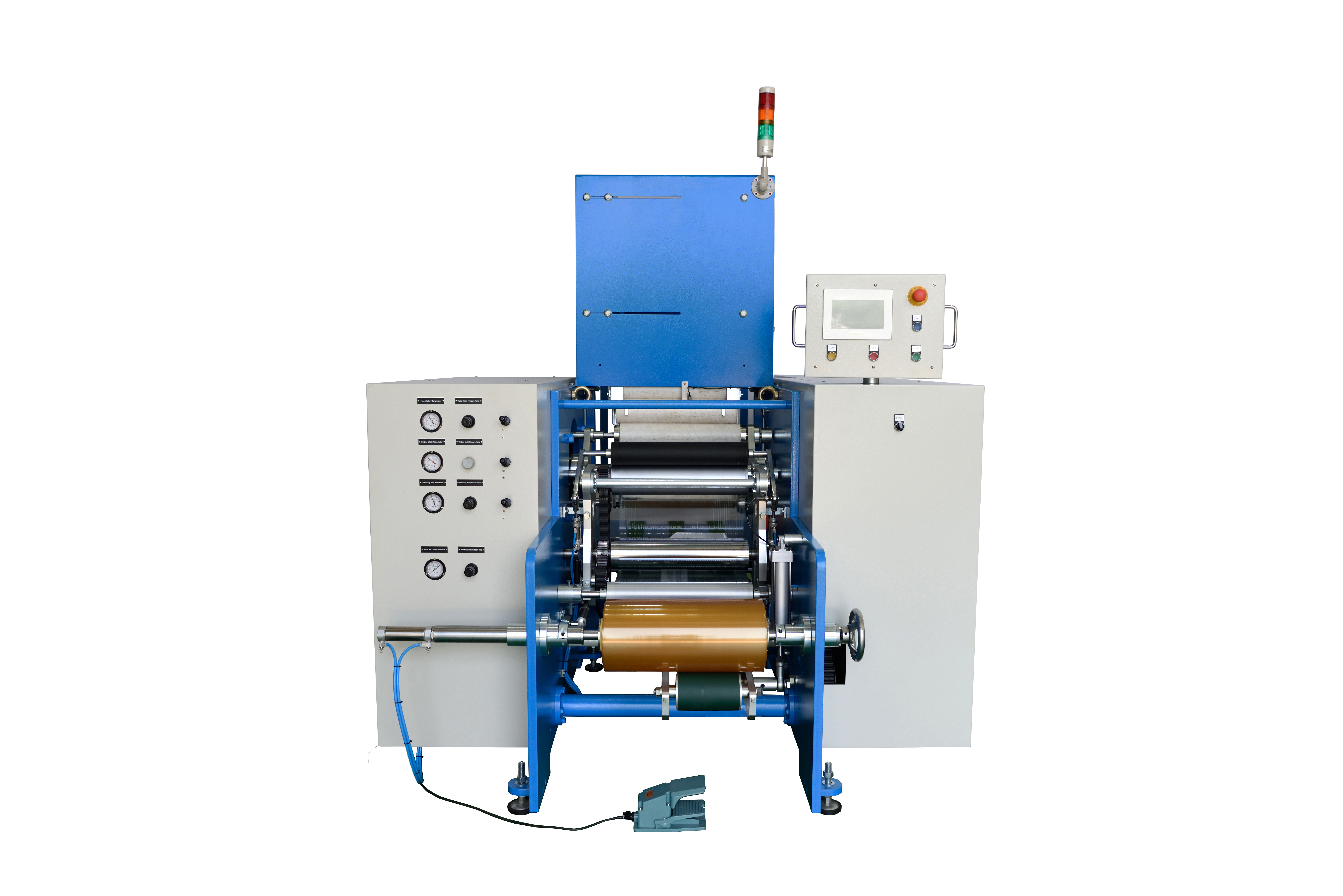

TRU-BRITE TB-CW-3S

TRU-BRITE TB-CW-3S



DESCRIPTION

TB-CW-3S, three shaft type automatic cling film rewinding machine.
It's designed for PE & PVC cling film,
suitable for rewind big paper core which the inner diameter is from 50-76 mm.
The finished rolls outer diameter is up to 150 mm.
Every shaft is carried catching and discharging units,
automatic feeding, and automatic unloading.
Automated length correcting makes every product accurate.
TB-CW-3S uses the heating strip cutting system. It fits various materials quickly,
cuts more precisely, makes users adjust machine more convenient.
TB-CW-3S brings you better operation and higher efficiency.
Welcome to consult machine with us. We will at your service.


SPECIFICATIONS

Raw Material PE / PVC Food Wrapping Film
Max. mother roll diameter 500 mm
Mother roll core I.D. 3” (76 mm)
Mother roll available width 250 - 450 mm
Material thickness 9 - 20 micron
Length of the finished rolls 5 - 1000 m
Max finished rolls diameter 150 mm
Finished paper cores I.D. 50-76 mm
Length of finished paper core 260 mm - 470 mm
Speed 500 M/min (Max)
Installed power 6 KW
Compressed air 0.5 - 0.8 Mpa
Power supply 220V, 50Hz, 3ph
Dimensions L x W x H 2000 x 2000 x 1900 mm
Net weight 1500 kg
